The electronics industry has undergone a remarkable transformation over the past few decades, with products becoming smaller, lighter, and more powerful than ever before. Consumers and industries alike now expect compact devices with advanced functionality, whether they are smartphones, wearable fitness trackers, automotive control systems, medical equipment, or industrial automation devices. Meeting these expectations requires innovative circuit board technologies that can fit into tight spaces without sacrificing performance or reliability. This is where the Flexible Printed Circuit Board (FPCB) has become a game-changing solution.
Unlike conventional rigid circuit boards, an FPCB can bend, fold, and flex while maintaining reliable electrical connections. This flexibility enables engineers to design products with complex shapes, reduce wiring requirements, and improve overall product durability. As demand for flexible electronics continues to rise, businesses are increasingly partnering with experienced Flex PCB Manufacturers that possess the technical expertise, advanced manufacturing capabilities, and quality control systems needed to produce reliable flexible circuits for modern applications.
This article explores the fundamentals of flexible printed circuit boards, their manufacturing process, key benefits, major applications, and the importance of selecting the right manufacturing partner.
Understanding Flexible Printed Circuit Board (FPCB)
A Flexible Printed Circuit Board (FPCB) is a type of printed circuit board built on a flexible insulating substrate rather than the rigid fiberglass materials used in traditional PCBs. The most commonly used base material is polyimide because it offers excellent flexibility, high thermal resistance, chemical stability, and strong electrical insulation properties.
Copper conductors are laminated onto the flexible substrate and patterned to form electrical circuits that can withstand repeated bending and movement. Unlike rigid boards that maintain a fixed shape, FPCBs are designed to flex during installation or throughout the product’s operating life without damaging the conductive traces.
Flexible circuit boards are available in single-sided, double-sided, and multilayer configurations depending on the complexity of the electronic design. Some products also utilize rigid-flex technology, which combines rigid PCB sections with flexible circuits to create compact and highly reliable electronic assemblies.
How Flexible Printed Circuit Boards Are Manufactured
The manufacturing process of an FPCB requires specialized equipment and engineering expertise because flexible materials behave differently from traditional rigid laminates. Production begins after engineers finalize the PCB design and prepare fabrication files, including Gerber data, drill information, and manufacturing specifications.
The process starts with laminating copper foil onto a flexible substrate such as polyimide. Advanced photolithography techniques transfer the circuit pattern onto the copper surface, after which chemical etching removes unwanted copper to create the required electrical traces.
Protective coverlay films are then applied over the circuitry to provide insulation while preserving flexibility. Unlike conventional solder masks used on rigid PCBs, coverlay materials are specifically designed to bend repeatedly without cracking or separating from the substrate.

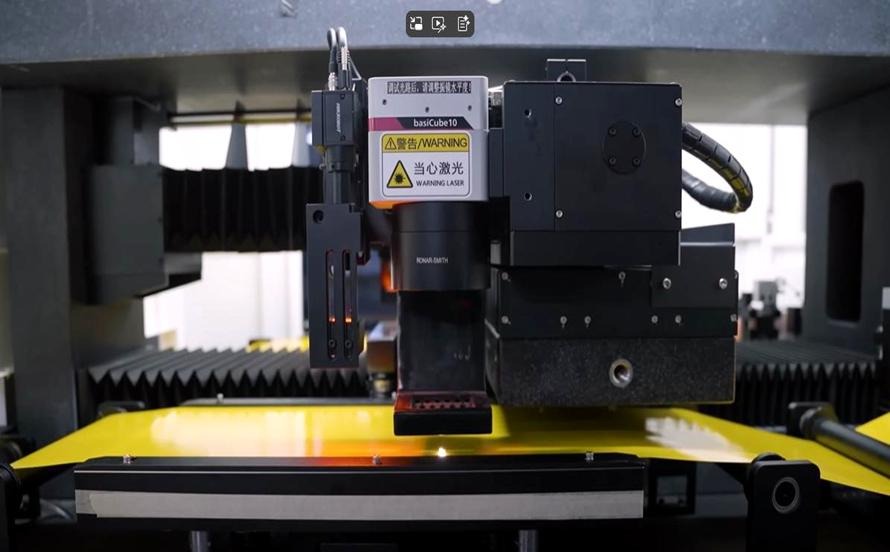

Depending on the application, stiffeners may be added beneath connectors or component mounting areas to improve mechanical strength. Laser drilling, copper plating, surface finishing, and precision cutting complete the fabrication process before each board undergoes electrical testing and dimensional inspection.
Throughout production, manufacturers carefully monitor every process to ensure the finished flexible circuit maintains both mechanical flexibility and electrical reliability.
Advantages of Flexible Printed Circuit Board Technology
One of the most significant advantages of an FPCB is its ability to bend and conform to complex product shapes. This allows engineers to maximize available space inside compact electronic devices while simplifying mechanical design.
Flexible circuits also reduce the need for bulky wire harnesses and multiple connectors. By integrating electrical pathways into a single flexible circuit, manufacturers can reduce assembly complexity while improving overall product reliability. Fewer connectors also minimize potential points of failure caused by vibration or mechanical wear.
Weight reduction is another important benefit. Flexible printed circuit boards are considerably lighter than traditional rigid boards and cable assemblies, making them especially valuable in aerospace systems, portable electronics, drones, and wearable devices where minimizing weight is critical.
Mechanical durability is equally important. FPCBs are designed to withstand repeated flexing, vibration, and mechanical stress without compromising electrical performance. This makes them ideal for applications involving continuous movement or limited installation space.
The ability to combine electrical performance with mechanical flexibility has made flexible circuit technology one of the fastest-growing segments of the PCB industry.
Applications of Flexible Printed Circuit Boards
Flexible printed circuit boards are now widely used across numerous industries because of their adaptability and reliability. Consumer electronics represent one of the largest application areas, where flexible circuits are found in smartphones, tablets, laptops, digital cameras, gaming devices, smartwatches, and foldable electronic products.
Medical technology also depends heavily on flexible circuit boards. Portable diagnostic equipment, patient monitoring systems, hearing aids, implantable devices, endoscopic instruments, and wearable healthcare products all benefit from the compact design and durability offered by FPCBs.
In the automotive sector, flexible circuits support advanced driver assistance systems, dashboard displays, lighting modules, battery management systems, steering controls, sensors, and electric vehicle electronics. Their resistance to vibration and temperature variations makes them highly suitable for demanding automotive environments.
Aerospace and defense applications require lightweight and highly reliable electronic assemblies, making FPCBs an excellent choice for aircraft control systems, satellite communication equipment, navigation systems, and military electronics.
Industrial automation, robotics, telecommunications infrastructure, renewable energy equipment, and Internet of Things (IoT) devices also continue to increase the demand for flexible printed circuit board technology.
Materials Used in FPCB Manufacturing
The performance of a flexible printed circuit board depends largely on the quality of the materials used during fabrication. Polyimide remains the preferred substrate because it combines flexibility with excellent thermal stability and electrical insulation.
Copper foil forms the conductive circuitry. Rolled annealed copper is commonly selected for dynamic flex applications because it offers superior flexibility and fatigue resistance compared to electrodeposited copper.
Coverlay films protect the conductive traces while allowing the board to maintain its flexibility during repeated movement. Depending on the application, manufacturers may also incorporate pressure-sensitive adhesives, epoxy materials, or acrylic bonding layers to improve mechanical performance.
Surface finishes such as ENIG (Electroless Nickel Immersion Gold), immersion silver, OSP, or HASL are selected based on assembly requirements and environmental conditions. Proper material selection plays a crucial role in ensuring long-term reliability across different operating environments.
Why Choosing Experienced Flex PCB Manufacturers Is Important
Manufacturing flexible printed circuit boards requires specialized knowledge that extends beyond conventional PCB fabrication. Experienced Flex PCB Manufacturers understand the unique challenges associated with flexible materials, bend radius calculations, dynamic flex performance, and mechanical stress management.
Professional manufacturers work closely with customers during the design stage, performing Design for Manufacturability (DFM) reviews to identify potential issues before fabrication begins. Early engineering support helps optimize trace routing, material selection, coverlay design, and stiffener placement while improving manufacturing efficiency.
Leading manufacturers also invest in advanced fabrication equipment capable of producing fine-line circuitry, laser-drilled microvias, multilayer flexible circuits, rigid-flex assemblies, and high-density interconnect designs. Their manufacturing capabilities ensure consistent quality even for highly complex electronic products.
Equally important is the ability to scale production efficiently from prototype quantities to high-volume manufacturing while maintaining consistent quality standards throughout the process.
Quality Assurance in Flexible PCB Manufacturing
Quality control is a critical aspect of flexible PCB manufacturing because both electrical performance and mechanical durability must be maintained throughout the product’s service life. Manufacturers implement comprehensive inspection procedures at every stage of production to ensure consistent quality.
Automated Optical Inspection (AOI) verifies circuit accuracy, while electrical testing confirms circuit continuity and insulation integrity before shipment. Dimensional inspections ensure precise alignment, particularly for multilayer and rigid-flex designs.
Manufacturers may also perform bend testing, thermal cycling, environmental reliability testing, and mechanical fatigue analysis depending on the intended application. These evaluations help verify that the flexible circuit can withstand repeated movement without electrical failure.
Many leading manufacturers maintain internationally recognized certifications such as ISO 9001, IPC standards, UL certification, ISO 13485 for medical electronics, IATF 16949 for automotive applications, and RoHS compliance, demonstrating their commitment to quality and manufacturing excellence.
Future Trends in Flexible Printed Circuit Board Technology
The future of FPCB technology continues to expand alongside emerging innovations in electronics. Foldable smartphones, wearable medical devices, flexible displays, autonomous vehicles, advanced robotics, and Internet of Things products are creating new opportunities for flexible circuit board applications.
Manufacturers are investing in laser direct imaging, precision automation, artificial intelligence-assisted inspection, and smart manufacturing technologies to improve production accuracy while reducing lead times.
Advancements in flexible substrate materials, conductive inks, ultra-thin laminates, and embedded component technologies will further expand the capabilities of flexible circuit boards in next-generation electronic products.
As industries continue to demand lighter, thinner, and more intelligent electronic devices, flexible printed circuit boards will remain one of the most important enabling technologies for future innovation.
Conclusion
The Flexible Printed Circuit Board (FPCB) has transformed modern electronics by enabling compact designs, improved reliability, and greater mechanical flexibility. Its ability to bend, fold, and integrate into complex product designs makes it indispensable for industries such as consumer electronics, healthcare, automotive, aerospace, telecommunications, and industrial automation.
Choosing experienced Flex PCB Manufacturers is equally important for ensuring manufacturing precision, material quality, engineering support, and long-term product reliability. With advanced production capabilities, comprehensive quality control, and specialized expertise, trusted manufacturers help businesses successfully develop innovative electronic products that meet the growing demands of today’s rapidly evolving technology landscape.
